How are ballistic helmets manufactured?

DATE: Jul 4th, 2023

1.How are ballistic helmets manufactured?

Ballistic helmets are manufactured through a specialized process that involves several steps. Here is a general overview of how ballistic helmets are typically manufactured:

Design and Material Selection: The first step in manufacturing ballistic helmets is designing the helmet and selecting the appropriate materials. Ballistic helmets are typically made from advanced materials such as aramid fibers (e.g., Kevlar) or high-density polyethylene (HDPE) composites. These materials are chosen for their high strength and ability to withstand impact.

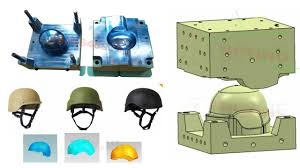

Mold Preparation: Once the design and material selection are finalized, molds are prepared. These molds are typically made from metal or other rigid materials and are shaped like the desired helmet design. The molds are carefully cleaned and treated to ensure proper adhesion and release during the manufacturing process.

Material Cutting: The selected ballistic material (aramid fibers or HDPE) is cut into specific shapes and sizes according to the helmet design. This can be done using automated cutting machines or manual cutting methods.

Helmet Formation: The cut material layers are then stacked or placed into the helmet molds. The number of layers and their arrangement may vary depending on the desired level of protection. The layers are often bonded together using adhesives or by applying heat and pressure to create a solid composite structure.

Molding Process: The prepared molds with the layered material are then placed into an industrial oven or press. Heat and pressure are applied to the molds to shape and compress the material layers, ensuring proper consolidation and bonding. This process may involve a combination of heat curing, compression molding, and cooling.

Trimming and Finishing: After the composite material has cured and cooled, the excess material around the edges of the helmet is trimmed and removed. This helps achieve the final shape and dimensions of the helmet. The helmets may also undergo additional finishing processes, such as sanding, painting, or applying protective coatings.

Quality Control and Testing: Once the helmets are manufactured, they undergo rigorous quality control and testing procedures to ensure they meet the required ballistic protection standards. This includes examination for defects, dimensional accuracy, impact resistance, and penetration resistance.

Certification and Packaging: After passing the quality control tests, the ballistic helmets are certified according to relevant standards and regulations. The helmets are then packaged and prepared for distribution.

It is important to note that the manufacturing process may vary slightly depending on the specific manufacturer and the type of ballistic helmet being produced.

2.Who invented the bulletproof helmet?

The invention of the bulletproof helmet cannot be attributed to a single individual. The development of ballistic helmets has evolved over time with contributions from various inventors, scientists, and military researchers.

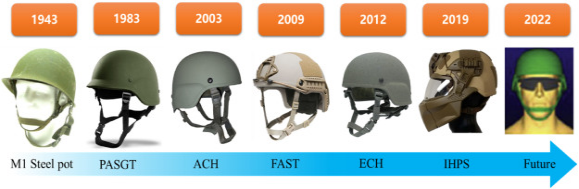

The concept of protecting the head from ballistic threats dates back centuries, but the modern ballistic helmet as we know it today has its roots in the early 20th century. During World War I, soldiers began wearing steel helmets to provide some protection against shrapnel and small arms fire. However, these helmets were not specifically designed to be bulletproof.

In the 1940s, advancements in materials science led to the development of helmets made from ballistic nylon and other synthetic materials that offered improved protection against bullets. One notable development during this time was the "M1C Helmet," which was used by the United States Army Air Forces and had a liner made of fiberglass-reinforced plastic.

Further advancements in the mid-20th century led to the introduction of helmets incorporating aramid fibers such as Kevlar. These fibers have high strength-to-weight ratios and excellent resistance to impact and penetration, making them ideal for ballistic protection. Kevlar helmets became widely adopted by military and law enforcement agencies around the world.

Since then, ongoing research and technological advancements have continued to enhance the design and protective capabilities of ballistic helmets. Today, ballistic helmets are designed using advanced materials, such as aramid fibers, high-density polyethylene (HDPE) composites, and ceramic inserts, to provide enhanced ballistic protection while also considering factors like weight, comfort, and durability.

While there isn't a single person credited with inventing the bulletproof helmet, it is the result of collective efforts and continuous innovation in the field of personal protective equipment.
